Diaphragm Pump BX Series

Metering Pump B Series

Features

Repeatability of preciese pumping ±2%

Single phase or three phase IP55 terminal box specification

Choose either hose or flange for connecting joints (PVC)

Application

Chemical dosing of Water treatment

Chemical dosing of Water supply and sewerage system

Liquid fertilizer of Hydroponics culture

Chemical dosing of pH adjustment

Sterilization of elevated water tanks

Chemical dosing of Septic tank

Dosing of anti-rust agent

Dosing of various chemicals

Specifications

Model Maximum flow
rate
(mL/min)
Number of strokes (mm-1) Stroke length (mm) Diaphragm diameter (mm) Maximum discharge pressure (MPa) Ratio Power (W) Connection Weight (kg)
Flange (PNC) (SUS) Hose (PVC)
BX01 50Hz 11 16


2



42









1.0
1/90










40












15AJI
S10K









φ6xφ11
6.5
60Hz 13 20
BX03 50Hz 66 75 1/20


6.0
60Hz 80 90
BX05 50Hz 100 120 1/12.5
60Hz 120 144
BX10 50Hz 180 40




4





65
1/36 7.0
60Hz 215 48
BX20 50Hz 340 75 1/20


6.5
60Hz 410 90
BX30 50Hz 550 120 1/12.5
60Hz 660 144
BX50 50Hz 740 166



0.5
1/9



φ9xφ15
60Hz 885 200
BX70 50Hz 1100 75


8



84
1/20


90



8.5
60Hz 1320 90
BX100 50Hz 1800 120 1/12.5
60Hz 2160 144

Series

Metering Pump BX Series

NFF/Hシリーズ

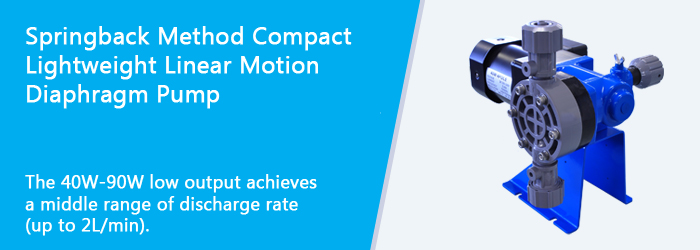

The compact and light-weight direct-acting diaphragm pump, with a mid-range discharge rate (up to 2L/min) at a 40W-90W low output range achieves a high level of cost performance.
Maximum flow rate: 2160mL/min
Maximum discharge pressure: 1.0MPa
