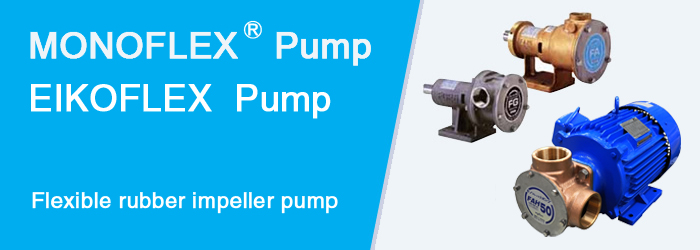

MONOFLEX® Pump
Features
Slurry handling
Slurry (liquid mixed with particle),
Gas mixed liquid can be transferred
Self-priming
4-6 m priming is available
Easy maintenance / Saving cost
Special tool is not required
Special skill is not necessary
A few consumable parts
Compact size
Easy to carry
Small footprint
Can be mounted on the system/vehicle
Aplication
Ship and Marine
Bilge collection, Sprinkling, Transferring of seawater for cooling, etc.
Food and Bevarage
Raw material transferring or blending at Winery, Brewery, Dairy
Water treatment
Transferring slurry, wastewater, discharge water, etc.
Other
Mounted on the system (ex; Dehydrator) ,on the vehicle (ex: agrichemical spray)
Operating principle
| 1) |
Impeller blades are bended by eccentric CAM, and it rotates further
the blades return to the original state.
At this time, vacuum condition is generated in the pump casing,
and pump sucks in liquid. |
 |
| 2) |
Liquid flows to the discharge port. |
| 3) |
The blade is bended again by eccentric CAM, and reducing the volume / increasing the pressure
between the blades, therefore the liquid is discharged. |
| |
  |
| |
|
Series
| Series |
Casing |
Port size (Rc thread) |
Motor |
Feature |
| FG |
SCS13 |
10/15/20/25/40/50/65 |
Option |
General purpose |
| FS |
SCS13 |
40/50 |
Option |
Sanitary care buffing |
| FA |
Bronze |
10/15/20/25/40/50/65 |
Option or Electromagnetic clutch |
Bronze standard model |
| FB |
Bronze |
25/40 |
Option |
Inclined impeller installed |
| FH |
Bronze |
10/15 |
1ph/100V/50,60Hz |
popularly used on ship |
| FAH |
Bronze |
40/50 |
3ph/200V(50,60Hz)/220V(60Hz) |
popularly used on ship |
| FD |
Bronze |
25/40 |
DC 24V |
popularly used on ship |
| FY |
Bronze |
50/80 |
Option or Electromagnetic clutch |
special design for seaweed transfer |
Stainless steel: General purpose
| |
Impeller details |
Material |
Internal code |
| |
● Standard |
CR (Chloroprene Rubber) |
RC |
| |
CRF (Chloroprene Rubber, Food grade) |
RX |
| |
NBR (Nitrile Butadiene Rubber, oil proof) |
RB |
| |
NBR (Nitrile Butadiene Rubber, oil proof, food grade) |
RY |
| |
|
|
| |
● Semi-standard |
CR (impeller bush exceptional design) |
RD |
| |
CR (inclined impeller for FB model) |
AC |
| |
|
|
| |
|
|
Appearance
FG (Casing: SCS13 )
DECLARATION
 |
|
|
Ordinary use
Slurry handling
Raw materials transfer / blend in winery, brewery
Drainage transfer in food factory
Wastewater transfer for hydration
Scum collection
|
| |
|
|
|
FS (Casing: Sanitary care buffing SCS13)
 |
|
|
Food raw materials collection / transferring
Winery, Brewery, Dairy husbandry (milk)
|
| |
|
|
|
FA/FB (Casing: Bronze)
 |
|
|
Seawater transfer (for preserve, washing the deck etc.)
Mounted on the ship
Collection/Transferring of seaweed, fibrous materials
Bilge collection
|
| |
|
|
|
FH (Casing: Bronze, with 1 phase /100V motor)
 |
|
|
Port size (mm) 10 / 15
N/W (kg) 10 / 16
Motor (kW) 0.2 / 0.4
With carrying handle
Seawater supply and drainage for preserve
Transfer general service water
|
| |
|
|
|
FAH (Casing: Bronze, with 3 phase IE3 motor)
 |
|
|
Port size (mm) 40 / 50
N/W (kg) 28 / 53
Motor (kW) 1.5 / 3.7
Carrying handle (Option)
Water supply and drainage for cleaning
deck boards, holds etc.
|
| |
|
|
|
FD (Casing: Bronze with DC 24V motor)
 |
|
|
Port size (mm) 10 / 25 / 40
N/W (kg) 2.9/ 15 / 18
With carrying handle
Supply / Circulation of seawater for preserve
Sprinkling of water on deck, toilet for cleaning etc.
|
| |
|
|
|
FY (Casing: Bronze)
 |
|
|
Port size 50A / 80A
Exceptional design for collection / transferring
Seaweed or other Fibrous material without damaging the fiber
|
| |
| |
|
|
|
