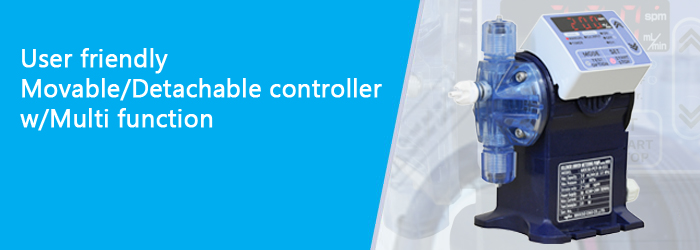

Solenoid Pump NRX series
Features
Controller
High-luminance LED segment movable display with high visibility as standard.
Air vent valve
The air vent valve differs from the diaphragm head in color for easy clarity.
Adjusting air vent valve opening and prevents falling off by stopper function.
Application
Dosing of Bathtub/pool sterilant (sodium hypochlorite, etc.)
Dosing of Food related fungicide/coloring agents/additive etc.
Chemical dosing of Cooling tower, water treatment
Dosing of Paper and pulp chemicals, slime control agent
Dosing of Livestock related medication
Dosing of Hydroponic culturing, liquid fertilizing
Chemical dosing of Plating
Specifications
| Model | NRX15 | NRX30 | NRX60 | NRX100 | NRX200 | |
| Max. Discharge Capacity (mL/min) | 15 | 30 | 60 | 100 | 200 | |
| Max. Discharge Pressure (MPa) | 1.0 | 1.0 | 1.0 | 0.7 | 0.35 | |
| Connecting hose size |
Inlet/Outlet/ Automatic air venting (option) |
φ4ｘφ9 Braided PVC hose |
φ6ｘφ11 Braided PVC hose |
|||
| Manual air venting | φ4ｘφ7 PVC hose | |||||
| Number of strokes | 100spm | 200spm | ||||
| Stroke length adjusting range | 50～100% | |||||
| Power supply / Frequency | Single phase AC100～240V 50/60Hz | |||||
| Maximum electric current | 1.4A | 3.0A | ||||
| Power consumption (average) | 6W | 10W | 18W | |||
| Protection | IP65 equivalent (Dust/Water proof) | |||||
Series
NRX Series
 |
|
